Isolation Transformer REOMED II

Transformers for Medical Technology

Description

The REOMED II isolation transformer is a reliable leakage current limiter in medical systems. Voltage-resistant materials—in conjunction with high-quality workmanship—result in safe isolation from the mains input side. The built-in isolation transformers are designed for low intrinsic losses, thus achieving very low no-load losses. The transformers are protected against overload and short circuit on both the input and output sides by an automatic circuit breaker. This eliminates the need for spare fuses and simultaneously prevents confusion. Furthermore, a temperature switch is integrated, providing additional safety.

Benefits

very good efficiency
Low noise
very low magnetic stray field
easy connection option
compact dimensions
stable aluminum housing
green illuminated power switch
low total weight
integrated circuit breakers
IEC60601-1:2005/AMD2:2020
ANSI/AAMI ES60601-1:2005/A2:2021
CAN/CSA C22.2 No. 60601-1:14/A2:2022-3 (Medical Technology) USA and Canada
IEC60601–1-2:2014(Partly); EN/IEC 61000-3-2:2014; EN/IEC 61000-3-3:2013

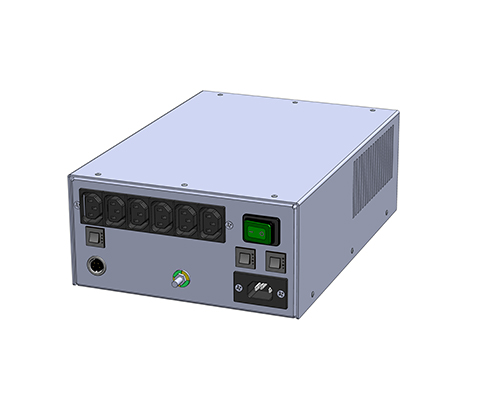

REOMED II 2000

The most powerful isolation transformer in the REOMED II series, the REOMED II 2000, is designed for demanding medical applications. It offers safe isolation and is made of high-quality, voltage-resistant materials. The transformer is protected against overload and short circuit and features an integrated thermal fuse. With its compact design and effective heat dissipation, it offers high reliability and safety. Certifications include IEC 60601-1 (ed 3.2) and IEC 60601-1-2 (ed 4.0).

REOMED II 1580

The REOMED II 1580 isolation transformer is characterized by its high performance and safety in medical systems. Made from voltage-resistant materials, it offers safe isolation and is protected against overload and short circuit. The integrated temperature switch provides additional safety. Its compact design and efficient heat dissipation make it ideal for various medical applications. It is certified according to IEC 60601-1 (ed 3.2) and IEC 60601-1-2 (ed 4.0).

REOMED II 1120

The REOMED II 1120 isolation transformer from REO impresses with its robust construction and high reliability in medical applications. It offers safe mains isolation and is made of high-quality, voltage-resistant materials. Protection against overload and short circuit is ensured by integrated circuit breakers. The device also features good heat dissipation and low weight. Certifications include IEC 60601-1 (ed 3.2) and IEC 60601-1-2 (ed 4.0), which underlines the high quality and safety of the product.

REOMED II 660

The REOMED II 660 isolation transformer from REO is optimally suited for medical systems, as it reliably limits leakage current. Manufactured from voltage-resistant materials, it offers safe isolation and is protected against overload and short circuit. With an integrated thermal fuse and a stable aluminum housing, it ensures high safety and durability. The device is characterized by its low weight and compact dimensions. It is certified according to IEC 60601-1 (ed 3.2) and IEC 60601-1-2 (ed 4.0).

Technical Data

Input voltage	230 V
Output voltage	230 V
Rated power consumption	660 – 2000 VA
Enclosure protection class	IP 20
Weight	7.7 – 18.0 kg
Primary circuit breaker	4 – 12 A
Secondary circuit breaker	3 – 10 A
Earth leakage current at 254V / 50/60Hz	< 500µA
Number of output sockets	6x according to IEC 320
Test voltage	4 kVac (between primary and secondary winding)
Max. ambient temperature	40 °C
Insulation resistance	> 2 MΩ
Protective conductor resistance	< 0.1 Ω

All devices feature inrush current limitation (NTC or electronic), potential equalization according to DIN 42801, a primary power cable, and protective temperature limitation. The devices can be mounted on walls, tables, or floors.
