Rail Technology Transformers
Certified Transformers for Safety and Comfort
REO develops and produces rail transformers, particularly for auxiliary power converters in the mains frequency range, as well as transformers for applications such as battery charging systems in the HF range. Our components offer maximum reliability and can be used in metros, trams, locomotives, trolleybuses, etc. Especially in the rail sector, where maximum comfort and safety for passengers are paramount, space-saving, safe, and durable components are required.
Advantages of Transformers
- Vibration and shock tested to DIN 61373
- High efficiency
- Low idling losses
- High environmental resistance
- Protection class IPX5
- Degree of soiling PD4A
- Low noise development / decoupled from structure-borne noise
- Weight-optimized

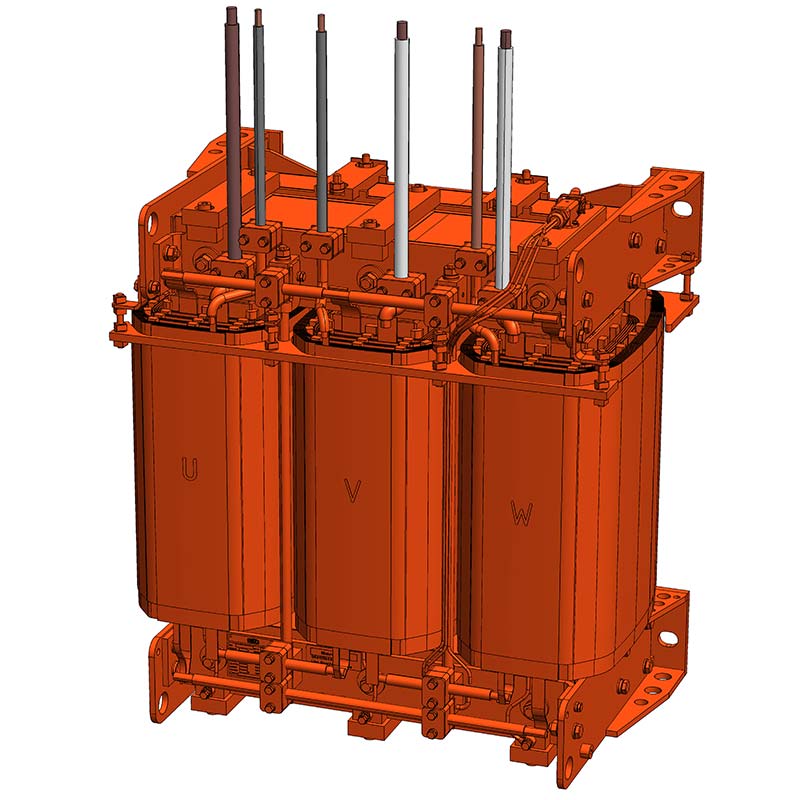

- Also available as a stray field transformer with integrated stray core
Performance range of REO transformers
| Rated power Pnom | Up to 1000 [kVA] |
| Voltage level | Up to 800 [V] |
| Frequency | 16 2/3 Hz to 100 [kHz] (NF/MF/HF) |
* The development of components based on customer specifications is a matter of course for us

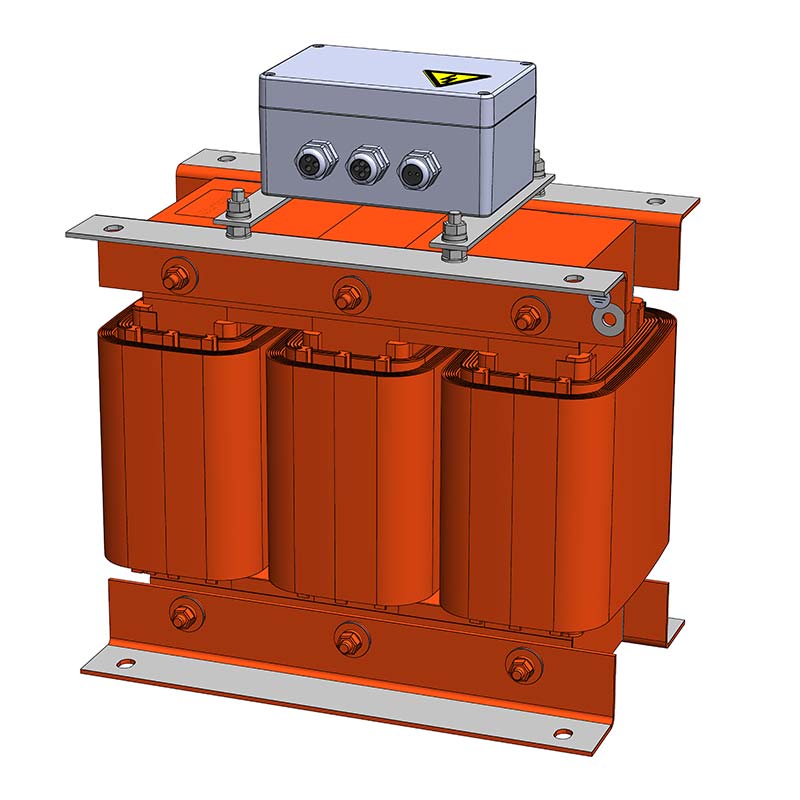

Three-phase transformer

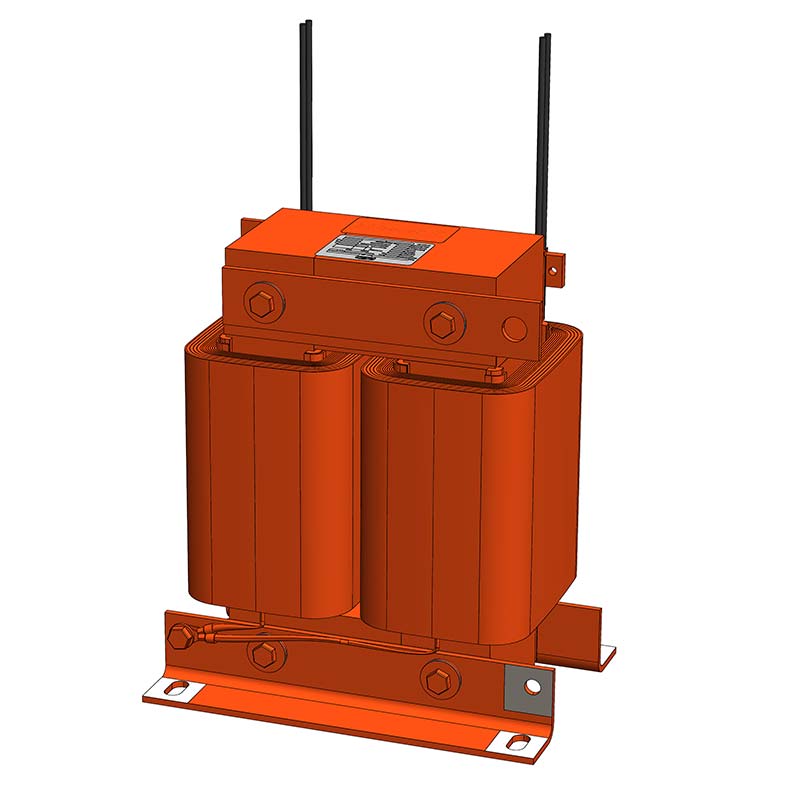

Single-phase transformer

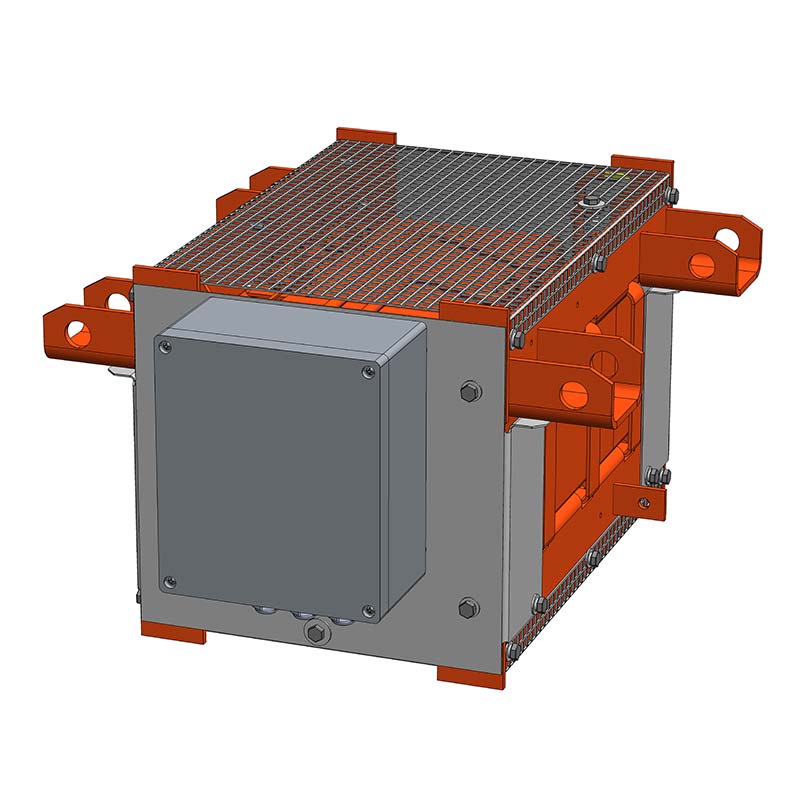

Galley transformer
