Programmable Phase Angle Controller REOVIB MTS 441
IP54 or IP20 Description The REOVIB MTS series includes single, dual, and triple-channel control units for vibratory feeder drives. These are phase-angle controls. Consequently, the vibration frequency of the conveying devices can be equal to or twice as high as the mains frequency of the input voltage (depending on the type, other frequencies are also possible). Plug connections for all inputs and outputs enable quick connection and facilitate the combination of multiple devices with each other or with external controls. The devices operate using digital technology and are controlled via an LED or LCD display and buttons. All settings can be made without the housing having to be opened. The REOVIB MTS 441 control units have a setpoint adjustment option for the conveying speed. All parameters can be entered via the display integrated in the front panel. The MTS 441 can be linked to other devices from the REOVIB MTS series. User-specific settings can be saved and recalled. The REOVIB MTS 441 is available in IP20 and IP54 versions, as well as in various connection variants: Input cable/output socket Complete cable connection solution for mains, output and control connections Benefits Phase-angle control with programmable functions Single-channel, two-channel or three-channel control for the optimal control of the complete conveyor system Digital setting of all parameters via LED display or multiline LCD display (MTS 443 LCD) In IP54 or IP20 design (MTS 441) Automatic mains voltage adjustment Material flow control Various sensor logic functions can be set Adjustable soft start With fill level/overflow control Integrated mains voltage compensation with constant vibration amplitude Technical data Mains input 110/230 V automatic detection Mains frequency 50 / 60 Hz +/- 3 Hz Output voltage 20 … 100V/ 40…210 V Output current max. 6 A, max. 10 A (Option) Number of outputs 1 Max. output current of all outputs – Vibration frequency 50 … 100 Hz (60/120 Hz) Setpoint value Display, P0ti, 0 … 10 V, 0 (4) … 20 mA Status signal 24 V DC Ext. enable 24 V DC, switch Sensor supply 24 V DC Setting Umin/ Umax Display Soft start Adjustable 0…5 Sec. Fill level/ overflow control PNP, 24 V DC Mains voltage compensation ✓ Coarse-/fine control ✓ Selectable cycle operation ✓ Sensor time out control ✓ Conformity CE, RoHS Protection class IP20/ IP54 Data sheet All data and configurations can be found in our product data sheet. Download data sheet Zertifizierung

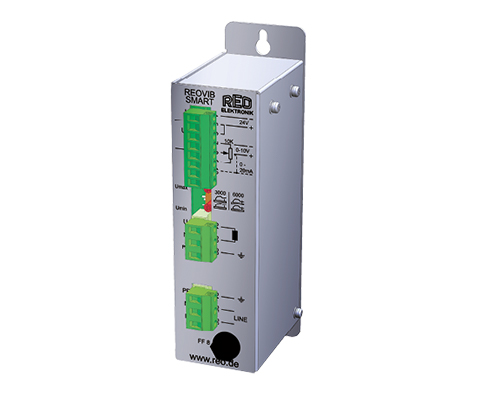

REOVIB SMART IP20
IP20 Description The REOVIB SMART series includes phase angle control units for use in vibratory conveyor applications. The devices offer the key functions for use in vibratory feeder technology, thus providing a cost-effective solution for controlling vibratory feeders – and in a high-quality design. The devices are available in various protection classes – as a control cabinet installation module in IP20 or as a housing variant in IP54 for direct mounting on the application. The housing variants with protection class IP54 are available in different versions: Input cable/output cable Input cable/output socket Complete cable connection solution for mains, output and control connections REOVIB SMART ATS 100 devices are available in an IP54 housing with output currents up to 15 A and are listed by UL. Benefits Cost-effective Phase-Angle Controls with essential functions IP54-Version for mounting directly on the vibrating machine or IP20-Version fas a module for mounting in a switch cabinet Versions available with UL approval (SMART ATS 100) Output current up to 15 A Typical applications Conveyor & assembly automation, conveyor technology, sorting systems Technical data Mains input 110/ 230 V switchable Mains frequency 50 / 60 Hz +/- 3 Hz Output voltage 20 … 100V/ 40…210 V Output current max. 15 A Vibration frequency 50Hz 50 … 100 Hz Vibration frequency 60Hz 60 … 120 Hz Setpoint value P0ti, 0 … 10 V, 0… 20 mA Ext. enable 24 V DC, switch Sensor supply 24 V DC Setting Umin/ Umax Internal potentiometer Soft start fixed Mains voltage compensation – Conformity UL,CE, RoHS Protection class IP54 Ambient temperature 0…45°C Zertifizierung Optional UL-certified
