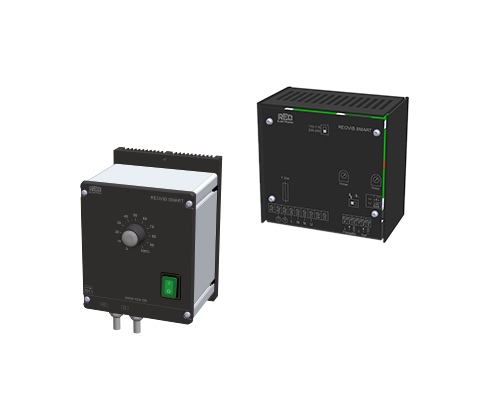

REOVIB SMART ATS 100 Phase-Angle Control
IP54, for direct mounting Description The REOVIB SMART ATS 100 devices are available as IP54 enclosure versions with output currents up to 15 A and are UL-listed. The REOVIB SMART series generally includes phase-angle control devices for use in vibratory feeding applications. The devices offer the essential functions for use in vibratory feeder technology, thus providing a cost-effective solution for controlling vibratory feeders – all in a high-quality design. The devices are available in various protection classes – as an IP20 control cabinet installation module or as an IP54 housing variant for direct mounting on the application. The IP54 housing variants are available in different versions: Input cable/output cable Input cable/output socket Completely pluggable with input plug and output socket Benefits cost-effective Phase-Angle Controls with essential functions IP54 version for direct mounting on the application or IP20 version for control cabinet installation Versions with UL approval (SMART ATS 100) available Output current up to 15 A Typical applications Feed & assembly automation, sorting systems Technical data Input voltage 110/230 V switchable Mains frequency 50 / 60 Hz +/- 3 Hz Output voltage 20 … 100V/ 40…210 V Output current max. 15 A Vibration frequency 50Hz 50 Hz / 100 Hz Vibration frequency 60Hz 60 Hz / 120 Hz Set point specification Potentiometer, 0 … 10 V, 0 … 20 mA Ext. enable 24 V DC, switch Umin/ Umax setting internal potentiometer Soft start fixed definition Mains voltage compensation – Conformity UL, CE, RoHS Protection class IP54 Ambient temperature 0…45°C Certifications Optional UL-certified
3-Phase Power Controller REOTRON MDW 700
3-phase thyristor power controller Description REOTRON MDW Power Controllers are used in industrial process engineering and especially in thermal systems. The thyristor controllers are available as phase angle controllers and with burst firing control and have internal voltage, current, and power controllers – so the output power remains stable even under high demands. The devices can operate both directly on the load to be controlled (e.g. in infrared heaters) and as primary controllers of Transformers for voltage adjustment and safe isolation (e.g. in graphite heating elements). Thyristor controllers of the REOTRON MDW series (3 controlled phases) are modern microprocessor-controlled devices with integrated measuring devices for the actual values of voltage and current transformers. Outputs (actual value monitor) with 0…+10V, DC are available for processing the actual values in external system components. Communication with the devices can take place via analog interfaces 0… +10 V, DC, 0(4)… 20 mA, potentiometers or field bus systems Profibus-DP, CAN bus, DeviceNet, EtherNet/IP, ProfiNet and EtherCAT, thus enabling integration into existing bus systems. The devices can be adapted to the respective load conditions via internally adjustable parameters Umax, Imax, Pmax as well as ramp-up ramp and ramp-down ramp. The REOTRON MDW 700 thyristor controllers are designed as switch cabinet installation devices with protection class IP 20 for mounting on a mounting plate. The cooling type is air cooling, fans are integrated from 150 A. The devices in the REOTRON MDW-WK series are designed for water cooling and can be easily integrated into an existing water circuit. Benefits phase-angle or burst-fire controllers measuring of effective values connection via analog interfaces, potentiometers or field bus systems Air or water- cooling installation device for control cabinets Technical data REOTRON MDW 700-10 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 10 A REOTRON MDW 700-25 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 25 A REOTRON MDW 700-50 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 50 A REOTRON MDW 700-80 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 80 A REOTRON MDW 700-110 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 110 A REOTRON MDW 700-150 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 150 A REOTRON MDW 700-200 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 200 A REOTRON MDW 700-300 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 300 A REOTRON MDW 700-115* 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 115 A REOTRON MDW 700-160* 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 160 A REOTRON MDW 700-250* 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 250 A REOTRON MDW 700-350* 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 350 A REOTRON MDW 700-450* 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 450 A Load Type Resisive/ Induktive Target Value: Storm, Voltage, Power 0…+10 V, DC 0(4)…20 mA Internal keyboard Interface (optional) Profibus-DP, CAN-Bus, DeviceNet, EtherCAT Release Input 24 V, DC, external contact (potential-free) Status update ready , status update power on Relay, changeover contact Relay, changeover contact Display for effective value : Current/Voltage 0…+10 V, DC Betriebstemperatur 0…+45°C Storage/ Transport temperature -10…+70°C Protection class IP 20 * with water cooling

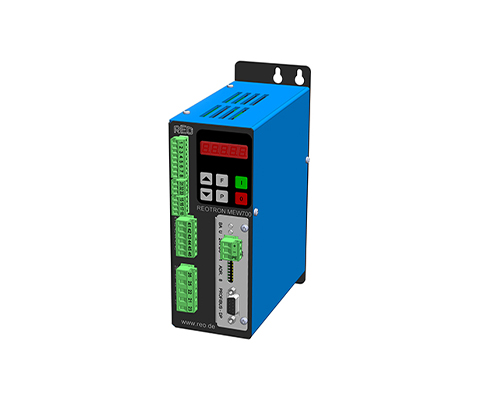

1-Phase Power Controller REOTRON MEW 700
The REOTRON MEW power controllers are predestined for applications in the process industry, especially in thermal engineering systems.

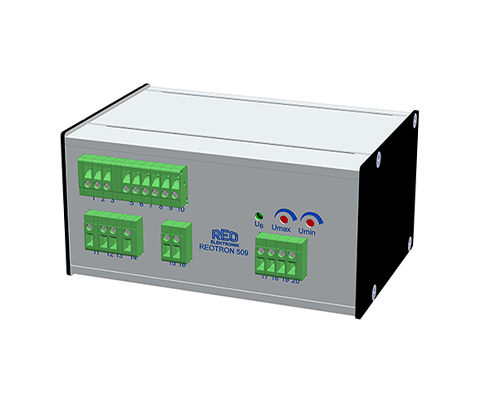

Single-phase Power Controller REOTRON EW 509
REOTRON EW 509 is a single-phase thyristor control for currents up to 15 A. The control electronics is free of mains potential. The REOVIB 509 is designed for controlling bowl or linear feeders up to 15 A current rating. The output frequency 50Hz/100Hz (60Hz/120Hz) is selected to suit the feeder. In the regulation circuit there is built-in compensation for mains variations.
DC-Power supply REOTRON SMP-LM
The DC power supplies from the REOTRON SMP series are primary switched-mode power supplies with galvanic isolation from the input to the output. The devices can be used as voltage, current or power regulators.
DC-Power supply REOTRON SMP-SMB
The DC power supplies from the REOTRON SMP series are primary switched-mode power supplies with galvanic isolation from the input to the output. The devices can be used as voltage, current or power regulators.

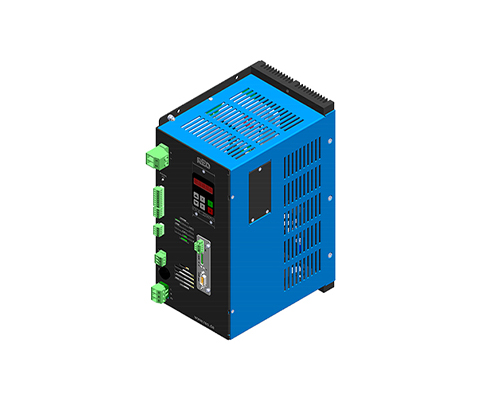

DC-Power supply REOTRON SMP-KMB
The DC power supplies from the REOTRON SMP series are primary switched-mode power supplies with galvanic isolation from the input to the output. The devices can be used as voltage, current or power regulators.
DC Switching Power Supply REOTRON SMP-ESM
The DC power supplies from the REOTRON SMP series are primary switched switching power supplies with galvanic isolation from the input to the output. The devices can be used as voltage, current or power regulators.

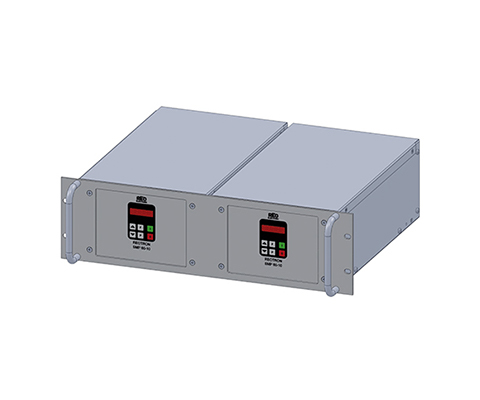

DC-Power Supply REOTRON SMP-ESH
The REOTRON SMP power supplies are primary switched power supplies with galvanic separation from the input to the output. They can be used as voltage, current or power regulators.
AC Magnets REOVIB WI 121
Description Standard series, fully encapsulated, maximum power 3900 VA at 3000 1/min or 6000 1/min Mounting via threaded holes on the base and armature surface Cable version downwards with unshielded or shielded cables Benefits Optimum size/performance ratio Good adjustability Power ratings up to 3900 VA Peak tractive force up to 6900 N Low Profile Typical applications Packaging industry and weighing sector for feeding and sorting processesAutomation process and assembly equipment which utilises electromagnetic drives. Technical data Types Max. nominal air gap[mm] Power at 6000 rpm [VA] Rated current=thermal rated current at 230V [A] Peak tensile force with nominal air gap [N] Power at 3000 1/min [VA] therm. Nominal current at 230V [A] Peak tension at nominal air gap [N] Magnet weight [kg] Anchor weight [kg] REOVIB WI 121/10 2,5 320 1,4 230 280 1,2 229 2,1 0,34 REOVIB WI 121/12 3 450 1,95 330 425 1,85 318 2,8 0,62 REOVIB WI 121/14 3 1200 5,2 850 1100 4,8 1350 6,9 1,45 REOVIB WI 121/16 3 2200 9,5 1590 1890 8,2 2620 10,5 2,6 REOVIB WI 121/18 3 – – – 3900 16,9 6900 28 9 Dimensions in mm Types a b c d f1 f2 f3 g h i p r REOVIB WI 121/10 100 68 66 – 61,5 12 9 66 38 17,5 30 M6 REOVIB WI 121/12 100 100 66 40 61,5 15 9 66 70 17,5 30 M6 REOVIB WI 121/12 100 100 66 40 61,5 15 9 66 70 17,5 30 M6 REOVIB WI 121/14 155 110 108 – 90,5 23 15 108 68 26,5 50 M10 REOVIB WI 121/16 155 168 108 80 90,5 23 15 108 126 26,5 50 M10 REOVIB WI 121/18 230 170 169 65 128,5 42 18 169 120 47,5 75 M12 Data sheet You can find all data and configurations in our product data sheet. Download data sheet Certifications
