AC Magnets REOVIB WI 211

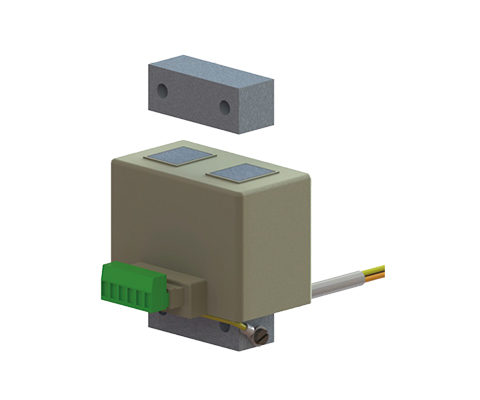

AC Magnets with coding plug Benefits Maximum power 250 VA Configurable voltage/frequency options increases flexibility Quick change of the connection voltage by using the appropriate Flat designs Typical applications Packaging industry and weighing sector for feeding and sorting processesAutomation process and assembly equipment which utilises electromagnetic drives. Technical data* Types Max. nominal air gap[mm] Power at 3000 1/min [VA] Nominal current=thermal nominal current at 230V [A] Peak tractive force at nominal air gap [N] Weight magnet [kg] Weight armature [kg] 6000 1/min [VA] REOVIB WI 211/7 1 175 0,75 40 1,15 0,165 REOVIB WI 211/9 1 210 0,9 105 1,96 0,33 REOVIB WI 211/10 1 250 1,1 210 2,1 0,34 *Suitable REOVIB control units: REOVIB SMART, REOVIB RTS, REOVIB MTS, REOVIB MFS *Typical applications: Packaging and weighing industry for feeding and sorting processes, automation processes when using drives with vibrating solenoids Dimensions in mm Types a b c d e f f1 f2 f3 f4 g h i k p r s [mm] ⌀t REOVIB WI 211/7 78 47 54 60 3 77 74 17 10 22 54 21 20 31 20 6,5 37 6,5 REOVIB WI 211/9 90 56 66 83 3 91 88 19 11 24 66 32,5 22 31 44 8,1 44 8 REOVIB WI 211/10 100 68 66 – – – 61,5 12 9 48 66 38 17,5 31 30 M6 – – Data sheet All data and configurations can be found in our product data sheet. Download data sheet Certifications
AC Magnets REOVIB WI 121
Description Standard series, fully encapsulated, maximum power 3900 VA at 3000 1/min or 6000 1/min Mounting via threaded holes on the base and armature surface Cable version downwards with unshielded or shielded cables Benefits Optimum size/performance ratio Good adjustability Power ratings up to 3900 VA Peak tractive force up to 6900 N Low Profile Typical applications Packaging industry and weighing sector for feeding and sorting processesAutomation process and assembly equipment which utilises electromagnetic drives. Technical data Types Max. nominal air gap[mm] Power at 6000 rpm [VA] Rated current=thermal rated current at 230V [A] Peak tensile force with nominal air gap [N] Power at 3000 1/min [VA] therm. Nominal current at 230V [A] Peak tension at nominal air gap [N] Magnet weight [kg] Anchor weight [kg] REOVIB WI 121/10 2,5 320 1,4 230 280 1,2 229 2,1 0,34 REOVIB WI 121/12 3 450 1,95 330 425 1,85 318 2,8 0,62 REOVIB WI 121/14 3 1200 5,2 850 1100 4,8 1350 6,9 1,45 REOVIB WI 121/16 3 2200 9,5 1590 1890 8,2 2620 10,5 2,6 REOVIB WI 121/18 3 – – – 3900 16,9 6900 28 9 Dimensions in mm Types a b c d f1 f2 f3 g h i p r REOVIB WI 121/10 100 68 66 – 61,5 12 9 66 38 17,5 30 M6 REOVIB WI 121/12 100 100 66 40 61,5 15 9 66 70 17,5 30 M6 REOVIB WI 121/12 100 100 66 40 61,5 15 9 66 70 17,5 30 M6 REOVIB WI 121/14 155 110 108 – 90,5 23 15 108 68 26,5 50 M10 REOVIB WI 121/16 155 168 108 80 90,5 23 15 108 126 26,5 50 M10 REOVIB WI 121/18 230 170 169 65 128,5 42 18 169 120 47,5 75 M12 Data sheet You can find all data and configurations in our product data sheet. Download data sheet Certifications
AC Magnet REOVIB WI 111
IP 00, for DIN rail mounting Description Standard series, fully encapsulated, maximum power of 350 VA at 3000 1/min or 6000 1/min Mounting by means of standard round holes, base plate or slotted holes Cable exit downwards or sideways Benefits Optimum size/performance ratio Good adjustability Safe mounting by means of solid base plate/mountings through the core Compact and robust structure TYPICAL APPLICATIONS Packaging industry and weighing sector for feeding and sorting processesAutomation process and assembly equipment which utilises electromagnetic drives. Technical data Types Max. Nominal air gap [mm] Power at 3000 1/min [VA] Rated current = thermal rated current at 230 V [N] Peak tractive force at nominal air gap [N] Weight [kg] 6000 1/min [VA] Magnet Anchor REOVIB WI 111/3 2 15 0,065 5 0,135 0,025 REOVIB WI 111/5 1 60 0,26 38 0,405 0,085 REOVIB WI 111/6 2,5 70 0,3 24 0,58 0,11 REOVIB WI 111/7 3 140 0,6 45 1,15 0,165 REOVIB WI 111/9 3 350 1,5 150 1,98 0,33 Technical Dimensions Types a b c d e f1 f2 f3 g h i k l [mm] l1 m ⌀n ⌀o p ⌀r s [mm] ⌀t REVIB WI 111/3 44,4 26,4 30 32 2 42 9 5 30 12 10 4,2 22 20 22 4,2 4,4 – 4,4 20 3,6 REVIB WI 111/5 61,5 31,5 45 50 3 63 14 7,5 45 16 15 3 43 35 36 4,2 4,4 15 5,1 28 5,1 REVIB WI 111/6 64 42 45 50 3 63 14 7,5 45 20,5 15 – 43 35 36 4,2 4,4 15 5,1 28 5,1 REVIB WI 111/7 78 47 54 60 3 77 17 10 54 21 20 4,5 45 40 45 7 5,5 20 6,5 37 6,5 REVIB WI 111/9 90 56 66 83 3 88 19 11 66 32,5 22 – 66 50 66 7 6,4 44 8,1 44 8,1 Data sheet All data and configurations can be found in our product data sheet. Download data sheet Certifications
AC Magnet REOVIB WE 131
Packaging and weighing industry for feeding and sorting processes; automation processes when using drives with vibrating magnets.
