Voltage Stabilizer
Description
Three-phase voltage stabilizers for stationary operation with common or separate control of the three phases (size SD 1 to SD 20).

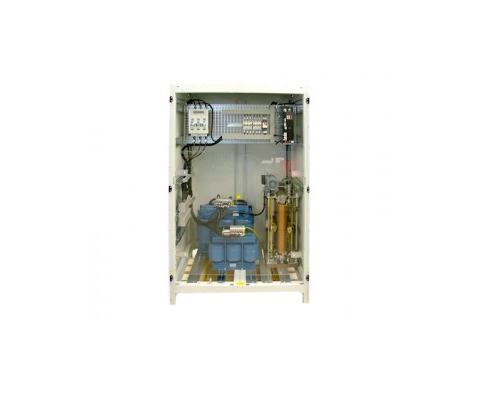

With built-in switch in the input up to size SD 14. The devices are installed on a base frame in IP 00 (version A+D) or control cabinets or angle iron frames according to protection class IP 20 (version B+C, E+F) and have analog voltmeters and ammeters in the output (version C+F).
Benefits
- high control accuracy without control oscillations
- compact design
- particularly suitable for IT systems and test fields
- Protection classes IP 00 – IP 54
Technical data
| Input voltage | 3 x 400 V L/L or 3 x 230 V L/N |
| Frequency | 50/60 Hz |
| Mains voltage fluctuation | +/- 10% or +/- 15%, 20% |
| Output voltage | 3 x 400 V L/L or 3 x 230 V +/- 1.0% *1 |
| Power | 0.9 kVA – 276 kVA |
| Protection class | IP 00 – IP 23 |
All data and configurations can be found in our product data sheet.
