IP00, for mounting on DIN rail
Description

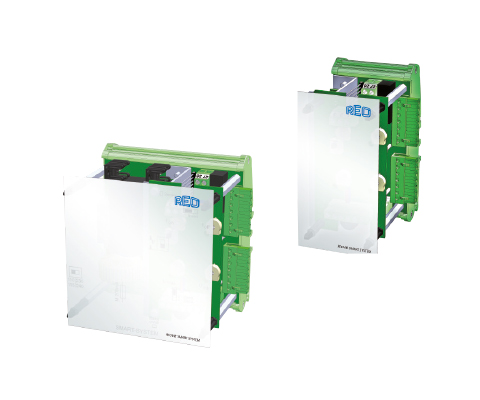

Basic module REOVIB SMART SYSTEM
Open design for DIN rail mounting with one output channel of max. 6 A with level control/jamming circuit. The base module provides power for expansion modules. This allows additional output modules to be connected up to a total current of 10 A.
REOVIB SMART SYSTEM extension module
Open design for DIN rail mounting. The expansion module has one output channel max. 6 A with level control/jamming circuit and can be set up together with the base module and several expansion modules.
REOVIB SMART SINGLE
Open design for DIN rail mounting with one output channel of max. 6 A.
Benefits
- cost-effective phase-angle controllers with the most important functions
- can be used as a stand-alone device or modular version for multiple outputs
- Output current up to 6 A
- DIN rail mounting
- Versions with fill level control/backlog control available
Typical applications
Weighing systems, multi-head weighing machines, feeding & assembly automation, sorting systems
| Types | SMART Single | SMART basic module | SMART extension module |
| Mains input | 110/ 230 V switchable | 110/ 230 V switchable | via SMART basic module |
| Mains frequency | 50 / 60 Hz +/- 3 Hz | 50 / 60 Hz +/- 3 Hz | via SMART basic module |
| Output voltage | 20 … 100V/ 40…210 V | 20 … 100V/ 40…210 V | 20 … 100V/ 40…210 V |
| Output current | max. 6 A | max. 6 A | max. 6 A |
| Vibration frequency | 50 … 100 Hz(60/120 Hz) | 50 … 100 Hz(60/120 Hz) | 50 … 100 Hz(60/120 Hz) |
| Setpoint specification | Potentiometer, 0 … 10 V, 0 (4) … 20 mA | Potentiometer, 0 … 10 V, 0 (4) … 20 mA | Potentiometer, 0 … 10 V, 0 (4) … 20 mA |
| Ext. enable | 24 V DC, switch | 24 V DC, switch | 24 V DC, switch |
| Umin/ Umax | internal potentiometers | internal potentiometers | internal potentiometers |
| Soft start | permanently defined | permanently defined | permanently defined |
| Max. output current of all outputs | – | 10 A | – |
| Level control/ accumulation control | – | ✓ | ✓ |
| Conformity | CE, RoHS | CE, RoHS | CE, RoHS |
| Protection class | IP00 | IP00 | IP00 |
You can find all data and configurations in our product data sheet.
