IP00, for mounting on DIN rail
Description

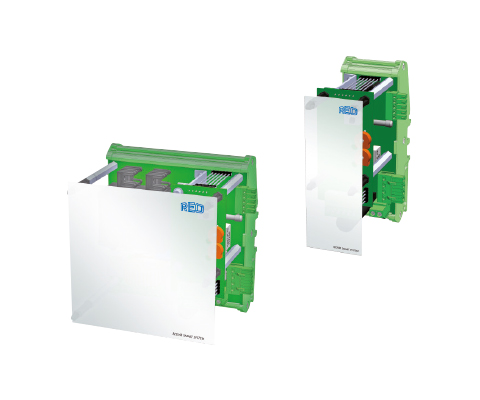

REOVIB SMART SYSTEM MINI BASIC MODULE
In open design for mounting on a DIN rail with an output channel of max. 1 A. The basic module has a supply for expansion modules. This allows further output modules to be connected in series up to a total current of 10 A.
REOVIB SMART SYSTEM MINI EXPANSION MODULE
In open design for mounting on a DIN rail. The expansion module has 1 output channel with max. 1 A and can be set up together with the basic module and several expansion modules.
Benefits
- cost-effective phase-angle controllers with the most important functions
- can be used as a stand-alone device or modular version for multiple outputs
- Output current up to 6 A
- DIN rail mounting
- Versions with fill level control/backlog control available
Typical applications
Weighing systems, multi-head weighing machines, feeding & assembly automation, sorting systems
| Types | SMART mini basic module | SMART mini expansion module |
| Mains input | 110/230 V automatic detection | via SMART mini basic module |
| Mains frequency | 50 / 60 Hz +/- 3 Hz | via SMART mini basic module |
| Output voltage | 20 … 100V/ 40…210 V | 20 … 100V/ 40…210 V |
| Output current | max. 1 A | max. 1 A |
| Vibration frequency | 50 … 100 Hz (60 / 120 Hz) | 50 … 100 Hz (60 / 120 Hz) |
| Set point setting | Potentiometer, 0 … 10 V, 0 (4) … 20 mA | Potentiometer, 0 … 10 V, 0 (4) … 20 mA |
| Ext. enable | 24 V DC, switch | 24 V DC, switch |
| U min / U max | internal potentiometer | internal potentiometer |
| Soft start | fixed defined | fixed defined |
| Max. output current of all outputs | 10 A | – |
| Fill level control / Backlog control | – | – |
| Conformity | CE, RoHS | CE, RoHS |
| Protection class | IP00 | IP00 |
All data and configurations can be found in our product data sheet.
