Measuring devices for vibratory conveyors
Description
The REOVIB Testbox 122 is designed to provide accurate indications of voltage and current, when servicing and testing vibratory conveyors. The devices are fitted with moving-iron meters and external connectors are provided to allow fast and safe connection of the feeder and controller.

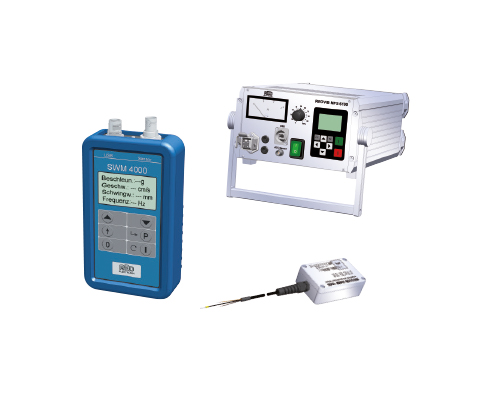

The SWM 4000 measuring device is used for the setup, testing, and servicing of vibratory conveyors. As a handheld device with integrated batteries, it can be used very easily for mobile applications. Using an acceleration sensor, frequency [Hz], oscillation amplitude [mm], oscillation velocity [cm/s], and oscillation acceleration [g] can be measured. The values are displayed on the integrated LCD and can also be stored in the device (40 measured values). Via the built-in USB interface, this stored data can be transferred to a PC for further analysis within a file.
The SWM 1000 sensor is used for monitoring vibratory feeder troughs. The sensor detects the acceleration of a magnetically or motor-driven vibratory trough and provides one measured value each for oscillation acceleration [g] and oscillation amplitude [mm]. The sensor’s output can be connected directly to a measuring device (with a 0 (4)… 20 mA input) or, for evaluation or monitoring purposes, connected to a PLC control, for example.
The REOVIB 6050 workshop device contains a REOVIB MFS frequency controller for vibratory conveyors and has been specially developed for use in servicing, construction and design of vibratory conveyors. For rapid control, the desired value of vibration amplitude is adjustable by means of a potentiometer and an integrated ammeter provides indication of the feeder running current.
The REOVIB 6100 workshop and diagnostic device is a microprocessor-controlled unit for power adjustment of vibratory conveyors, utilizing an integrated REOVIB MFS frequency converter. Simultaneously, oscillation frequency [Hz], oscillation amplitude [mm], oscillation velocity [cm/s], and oscillation acceleration [g] are determined using an acceleration sensor. The values are displayed on the integrated LCD and can also be stored in the device (40 measured values). Via the built-in USB interface, this stored data can be transferred to a PC for further analysis within a file. The operating frequency of the conveyor can be set manually or automatically determined with the help of an oscillation amplitude sensor via an automatic frequency search.
The REOVIB SWM 843 monitoring device is used for measuring and displaying the vibration behavior of vibratory troughs. The vibration of the trough is detected via an acceleration sensor. The current measured value can be read directly on the device’s 5-digit seven-segment display as an acceleration value [g], oscillation amplitude value [mm], or oscillation frequency value [Hz]. The acceleration value can be tapped proportionally at an analog output with 0 (4)… 20 mA for evaluation or monitoring purposes – either via a connected measuring device or, for example, a connected PLC control.
The REOVIB BK 032 is a monitoring device which measures the vibration behaviour of vibratory feeders. This evaluation device when used in conjunction with an acceleration sensor, allows an acceptable window of operation to be established using adjustable maximum and minimum limits. If operation outside of this window occurs, which could signal a mechnical problem for example, a associated relay switches over which can be used to trigger an external alarm.
OUR MEASURING DEVICES
- Testbox 122: Analog measurement instrument for testing vibratory conveyors.
- REOVIB 6050: Workshop equipment for assistance with development / design in the construction of vibratory conveyors.
- REOVIB 6100: Workshop and diagnostic unit for development, construction and quality control of vibratory conveyors.
- REOVIB SWM 4000: Handheld instrument for testing vibratory conveyors.
- REOVIB SWM 1000: Acceleration and vibration amplitude sensors for vibratory conveyors.
- REOVIB SWM 843: Monitoring device for vibrating feeders.
- REOVIB BK 032: Monitoring device for vibrating feeders.
Overview
Messbox 122 | REVOIB 6050 | REVOIB 6100 | SWM 4000 | |
Description | Moving iron pointer instruments | Workshop device for service and manufacturing/construction of vibratory feeders | Workshop and diagnostic device for development, construction, and quality control of vibratory feeders | Handheld service measuring device for vibration control |
Function | Measurement of current and voltage of the drive | Driving the feeder with a frequency inverter, determining the resonance frequency, measuring the magnetic current | Driving the conveyor with a frequency controller, determining the resonant frequency, measurement of the magnet current. Measuring acceleration, vibration amplitude, vibration frequency and theoretical conveyor speed | Independent measurement of vibration frequency, vibration amplitude, vibrational acceleration, and vibrational velocity. No drive |
SWM 1000 | SWM 843 | REVOIB BK 032 | |
Description | Acceleration and vibration amplitude sensor for vibrating feeder | Monitoring device for vibrating feeders | Monitoring device for vibrating feeders |
Function | Independent measurement of vibration amplitude and vibration acceleration, output of one analog measurement value each for direct display via a measuring device or for monitoring using PLC | Measurement of frequency, amplitude or acceleration. Display of the measured value on an integrated LED display. Output of an analogue measuremnt signal. Relay outputs to show that adjustable min. and ,max. values of acceleration have been reached |
Measurement of the acceleration of vibrating feeders. Relay outputs to show that adjustable min. and max. values of acceleration have been reached. |
All data and configurations can be found in our product data sheet.
