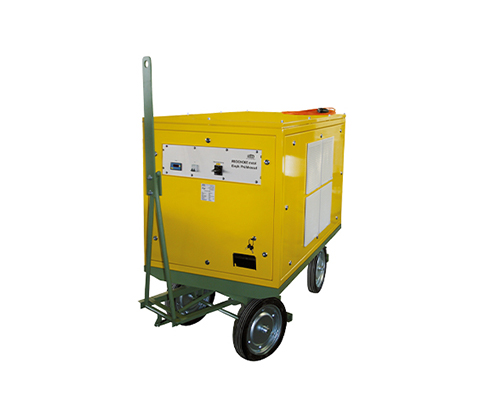

For testing frequency converters with inductive load
Description
For testing frequency converters with inductive loads. The load test with a high reactive current component compensates for this through the capacitance in the DC link, so that only the losses are supplied to the frequency converter being tested, e.g. with the REOLAB mobil 70 kW mobile AC/DC power supply. This saves approximately 70% to 80% of energy costs for the test.
Technical data
| Inductance | 0.25 mH – 0 % + 10 % |
| Voltage | 4500 VAC 50 Hz |
| Current | 2000 A DB max. 4000 A KB |
| Services | 157 kVA DB max. 628 kVA KB |
| Protection class | IP 44 |
You can find all data and configurations in our product data sheet.
