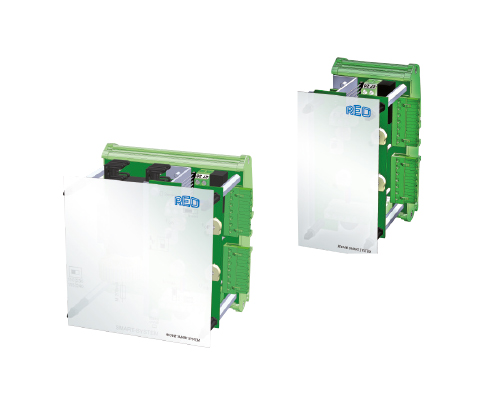

Phase-angle Control REOVIB SMART SYSTEM

IP00, for DIN rail mounting

Description

REOVIB SMART SYSTEM BASE MODULE

Open design for DIN rail mounting with one output channel of max. 6 A with level control/jamming circuit. The base module provides power for expansion modules. This allows additional output modules to be connected up to a total current of 10 A.

REOVIB SMART SYSTEM EXPANSION MODULE

Open design for DIN rail mounting. The expansion module has one output channel max. 6 A with level control/jamming circuit and can be set up together with the base module and several expansion modules.

REOVIB SMART SINGLE

Open design for DIN rail mounting with one output channel of max. 6 A.

Benefits

Cost-effective phase-angle controls with the most important functions
Can be used as a single device or modular version for multiple outputs
Output current up to 6 A
DIN rail mounting
Versions with level control/jamming circuit available

Typical applications

Weighing systems, multihead weighers, feeding & assembly automation, sorting systems

Technical data

Types	SMART Single	SMART mini Base Module	SMART mini Expansion Module
Mains input	110/ 230 V switchable	110/ 230 V switchable	via SMART Base Module
Mains frequency	50 / 60 Hz +/- 3 Hz	50 / 60 Hz +/- 3 Hz	via SMART Base Module
Output voltage	20 … 100V/ 40…210 V	20 … 100V/ 40…210 V	20 … 100V/ 40…210 V
Output current	max. 6 A	max. 6 A	max. 6 A
Vibration frequency	50 … 100 Hz (60 / 120 Hz)	50 … 100 Hz (60 / 120 Hz)	50 … 100 Hz (60 / 120 Hz)
Setpoint input	Potentiometer, 0 … 10 V, 0 (4) … 20 mA	Potentiometer, 0 … 10 V, 0 (4) … 20 mA	Potentiometer, 0 … 10 V, 0 (4) … 20 mA
Ext. Enable	24 V DC, switch	24 V DC, switch	24 V DC, switch
U min / U max	internal potentiometers	internal potentiometers	internal potentiometers
Soft start	fixed defined	fixed defined	fixed defined
Max. output current of all outputs	–	10 A	–
Level control / Jamming circuit	–	✓	✓
Conformity	CE, RoHS	CE, RoHS	CE, RoHS
Protection class	IP00	IP00	IP00
