IP00, switch cabinet mounting
Description

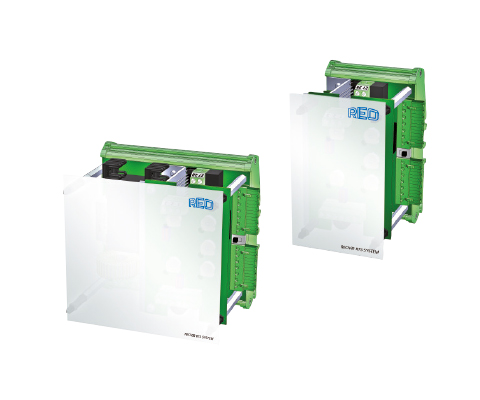

Basic module RTS SYSTEM
In open design for mounting on a DIN rail with an output channel of max. 6 A with fill level control/level switch and mains voltage compensation. The basic module has a power supply for expansion modules. This means that additional output modules can be added up to a total current of 10 A.
RTS SYSTEM extension module
In open design for mounting on a DIN rail. The extension module has one output channel max. 6 A with fill level control/backlog circuit and mains voltage compensation, and can be set up together with the basic module and several expansion modules.
REOVIB RTS SINGLE
In open design for mounting on a DIN rail with an output channel of max. 6 A, level control/level switch and mains voltage compensation.
Benefits
- Cost-effective phase control units with protection class IP00 for control cabinet installation
- can be used as a stand-alone device or modular version for multiple outputs
- Output current up to 6 A
- Versions available with fill level/overflow control
- Mains voltage compensation with constant amplitude
- Adjustable soft start ramp time
Typical applications
Conveyor & assembly automation, conveyor technology, sieving technology
| RTS Single | RTS basic module | RTS extension module | |
| Mains input | 110/ 230V switchable | 110/ 230V switchable | via RTS basic module |
| Mains frequency | 50 / 60 Hz +/- 3 Hz | 50 / 60 Hz +/- 3 Hz | via RTS basic module |
| Output voltage | 20 … 100V/40…210 V | 20 … 100V/40…210 V | 20 … 100V/40…210 V |
| Output current | max. 6 A | max. 6 A | max. 6 A |
| Vibration frequency | 50 … 100 Hz(60/120Hz) | 50 … 100 Hz(60/120Hz) | 50 … 100 Hz(60/120Hz) |
| Setpoint specification | P0ti, 0 … 10 V, 0 … 20 mA | P0ti, 0 … 10 V, 0 … 20 mA | P0ti, 0 … 10 V, 0 … 20 mA |
| Ext. enable | 24 V DC, switch | 24 V DC, switch | 24 V DC, switch |
| Umin/ Umax | internal potentiometers | internal potentiometers | internal potentiometers |
| Soft start | adjustable 0.2…5 sec. | adjustable 0.2…5 sec. | adjustable 0.2…5 sec. |
| Max. output current of all outputs | – | 10 A | – |
| Mains voltage compensation | ✓ | ✓ | ✓ |
| Fill level control/ congestion control | ✓ | ✓ | ✓ |
| Conformity | CE, RoHS | CE, RoHS | CE, RoHS |
| Protection class | IP00 | IP00 | IP00 |
All data and configurations can be found in our product data sheet.
