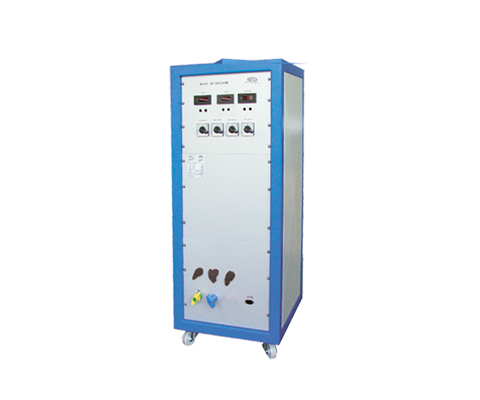

REO Three-Phase Load Resistor
Description
Optional liquid cooling for our test equipment enables a compact design with lower weight and a high protection class. With liquid-cooled resistor load units from REO, the energy dissipated in the water can be sustainably integrated into the thermal process of the
company, thus contributing positively to the overall energy efficiency of the company.
The units cooled in this way generate less waste heat overall – this is a major advantage, especially in smaller halls or at high ambient temperatures.
Benefits
- four three-phase fixed stages for testing auxiliary converter with active power
- Switching the individual stages on and off under load using illuminated pushbuttons
- Display of voltages, currents and direction of rotation
- upstream chokes for damping voltage peaks
- Outputs for current and voltage measurement
- Connections on terminals inside the control cabinet
TECHNICAL DATA*
| Nominal voltage | 3 x 440 V L/L or 3 x 254 V L/L 50/60Hz | |||
|---|---|---|---|---|
| Currents | 3 x 8 A | 3 x 15.7 A | 3 x 31.5 A | 3 x 63 A |
| Power | 6 kW | 12 kW | 24 kW | 48 kW |
| Total power | 90kW | Frequency | 50/60 Hz | |
| Protection class | IP 20 | |||
