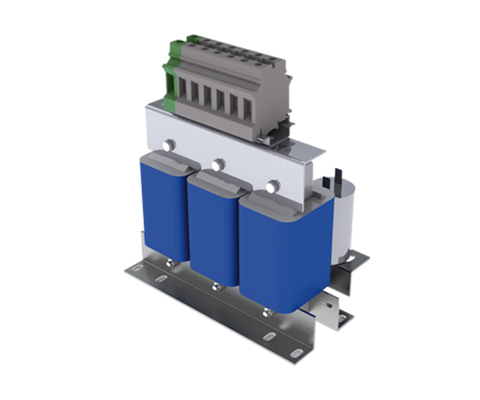

Three-phase harmonic filter (400 V / 50/60 Hz)
Description
This filter is designed to reduce THD (Total Harmonic Distortion) in B12 rectifiers. Harmonic currents are suppressed so effectively that a THD of less than 5% is achieved (e.g., in UPS systems). Typical Total Harmonic Distortion values for B12 rectifiers using Transformers are between 12 and 13%. This complies with standards EN 61000-3-4 and EN 61000-3-12. If stricter grid conditions are defined, REO harmonic filters of type CNW 897 must be used in addition to the Transformer. These are available in two variants:
- THD < <5%
- THD < <10 %
The IP00 version is especially suitable for panel mounting and can be mounted to save space here. The CNW 897 helps to comply with international power quality standards IEEE 519 or EN 61000-3.
Benefits
- Reduction of the THDI value
- Low voltage drop
- Increasing network stability
- Reduction of the input current up to 30%
- Suitable for installation in control cabinets
- easy integration into existing systems
- Increased reliability of electrical installations
- According to: EN 60289 / EN 61558
- Test voltage: L-L 2500 V, DC 1min; L-PE 2500 V, DC 1min
- Insulation class: T40/F
- Climate category: DIN IEC 60068-1
- Protection: IP 00 (also available as IP20 version)
- Nominal voltage: 400V / 50 Hz
- Standards: IEEE 519, EN 61000-3-12, EN 61000-3-2, IEC 61000-3-4
| Type | Rated voltage /Rated frequency [V] | Rated current 3x [A] | Inductance 3x [mH] | Capacity capacitor [μF] |
Rated power [kVA] | Power dissipation [W] |
Cu /AI [kg] | Weight throttle [kg] | Weight Condi [kg] |
| CNW 897/25/400/5% | 3×400 50/60 Hz | 25 | 2,9 | 3 x 68 | 17,3 | 70 | 9/ 0 | 20 | 5,98 |
| CNW 897/40/400/5% | 3×400 50/60 Hz | 40 | 2,48 | 3 x 80 | 27,7 | 90 | 11/ 0 | 26 | 6,58 |
| CNW 897/70/400/5% | 3×400 50/60 Hz | 70 | 1,1 | 3 x 180 | 48,5 | 130 | 18/ 0 | 32 | 10,18 |
| CNW 897/90/400/5% | 3×400 50/60 Hz | 90 | 0,9 | 3 x 220 | 62,4 | 200 | 0.8/ 3.4 | 49 | 12,58 |
| CNW 897/120/400/5% | 3×400 50/60 Hz | 120 | 0,75 | 3 x 220 + 3 x 40 | 83,1 | 250 | 0.8/5.1 | 59 | 17,66 |
| CNW 897/150/400/5% | 3×400 50/60 Hz | 150 | 0,6 | 3 x 330 | 103,9 | 350 | 1/ 8.4 | 59 | 16,78 |
| CNW 897/180/400/5% | 3×400 50/60 Hz | 180 | 0,5 | 3 x 330 + 3 x 180 | 124,7 | 330 | 1.1/ 8.4 | 65 | 21,86 |
| CNW 897/250/400/5% | 3×400 50/60 Hz | 250 | 0,36 | 3 x 330 + 3 x 220 | 173,2 | 440 | 1.7/ 12.8 | 82 | 29,33 |
| CNW 897/310/400/5% | 3×400 50/60 Hz | 310 | 0,3 | 6 x 330 | 214,8 | 570 | 1.9 /14 | 95 | 33,53 |
| CNW 897/400/400/5% | 3×400 50/60 Hz | 400 | 0,225 | 6 x 330 +3 x 220 | 277,1 | 910 | 3 / 10.1 | 108 | 45,2 |
| CNW 897/600/400/5% | 3×400 50/60 Hz | 600 | 0,2 | 9 x 330 | 415,7 | 1040 | 6.4 / 22.8 | 193 | 49,4 |
