RTEU 230 V Variable Transformer
Single-phase column variable transformers (autotransformer, ± adjustment, IP00) Description REO pillar variable transformers with ± adjustment, when combined with REO Transformers, create the perfect solution – enabling double power. All products in the series are supplied with UL-listed materials. The REO design enables easy handling and hysteresis-free adjustment of the output voltage, even with a high adjustment speed of the drive motor. This makes REO column variable transformers perfect for high power adjustment. REO column variable transformers comply with EN 61558-2-14 Benefits high setting accuracy (only approx. 0.7 V winding voltage) no generation of harmonics (clean sinusoidal output voltage) high overload capacity in short-term operation no EMC interference Technical data RTEU Input voltage 230 V 400 V Output voltage ± 0 – 230 V 2x ± 0 – 200 V Output current 8.5 – 435.0 A 250 A Output power 2.0 – 100.0 kVA Frequency range 50/60 Hz Switching group I0 Degree of protection IP 00 – IP 20 Technical data RTEU-S Input voltage 230 V 400 V Output voltage ± 0 – 230 V 2x ± 0 – 200 V Output current 47 – 1360 A Output power 18.0 – 300.0 kVA Frequency range 50/60 Hz Switching group Spar Degree of protection IP 00 – IP 20 Technical data RTGE Input voltage 230 V 400 V Output voltage 0 – 240 V 0 – 440 V Output current 8.3 – 290.0 A Output power 2.0 – 128.0 kVA Frequency range 50/60 Hz Switching group li0 Degree of protection IP 00 – IP 20 Data sheet All data and configurations can be found in our product data sheet. Download data sheet
Variable Transformer RTE 230 V
Single-phase column variable transformers (economy winding, IP00) Description The REO variable column transformers supplement the REOVAR series for currents up to 1000 A for fine adjustment of the output voltage with constant current at the output. The waveform of the sine wave is retained – so there are no EMC problems over the entire control range. All products in the series are supplied with UL-listed materials. The REO design enables easy handling of the carbon roller and spindle and the copper bevel gear drive allows hysteresis-free adjustment of the output voltage even at high adjustment speeds of the drive motor. REO column actuators are therefore perfect for high power adjustment. REO-column type variable transformers conform to EN 61558-2-14 Benefits High-precision adjustment (turn-to-turn voltage approx. 0.7 V) Generate no harmonic currents or voltages (clean sinusoidal output voltage, no harmonics) High overload capability for short time duty no EMC interference Technical specifications RTE Input voltage 230 V 400 V Output voltage 0 – 230 V 0 – 400 V Output current 8.5 – 435.0 A 250 A Output power 2.0 – 100.0 kVA Frequency range 50/60 Hz Vector group Spar Protection class IP 00 – IP 20 Technical specifications RTE-S Input voltage 230 V 400 V Output voltage 0 – 230 V 0 – 400 V Output current 47 – 1360 A Output power 18 – 300 kVA Frequency range 50/60 Hz Vector group Spar Protection class IP 00 – IP 20 Technical data RTEU Input voltage 230 V 400 V Output voltage ± 0 – 230 V 2x ± 0 – 200 V Output current 8.5 – 435.0 A 250 A Output power 2.0 – 100.0 kVA Frequency range 50/60 Hz Switching group I0 Protection class IP 00 – IP 20 Technical data RTEU-S Input voltage 230 V 400 V Output voltage ± 0 – 230 V 2x ± 0 – 200 V Output current 47 – 1360 A Output power 18.0 – 300.0 kVA Frequency range 50/60 Hz Vector group Spar Protection class IP 00 – IP 20 Technical data RTGE Input voltage 230 V 400 V Output voltage 0 – 240 V 0 – 440 V Output current 8,3 – 290,0 A Output power 2.0 – 128.0 kVA Frequency range 50/60 Hz Vector group li0 Protection class IP 00 – IP 20 Data sheet All data and configurations can be found in our product data sheet. Download data sheet

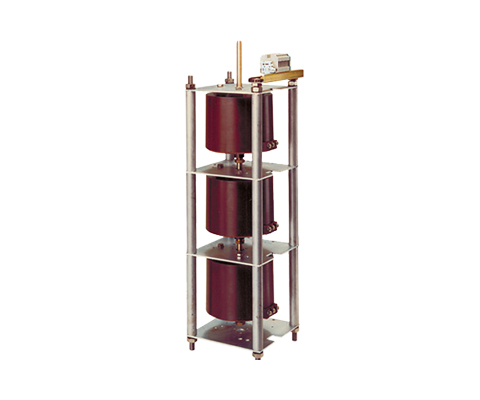

Variable Transformer REOVAR DRRTO/DRRTOSPW
Three-phase variable toroidal transformers (economy winding, IP 00) Description REOVAR variable toroidal transformers from the market leader for variable transformers regulate the output voltage in fine steps with constant current at the output. Our variable toroidal transformers are suitable for frequencies from 50 – 400 Hz – other frequencies on request. The particular advantage of these series is that the sinusoidal shape is retained – so there are no EMC problems. The special core winding of REO generates no stray fields and a low voltage drop. Input voltage: 3 x 400V 50/60 Hz Output voltage 3 x 0-400 V or 0-450 V Ambient temperature max. 40° C Connection group Star / eco REO toroidal variable transformers confrom to EN 61558-2-14 Options Degree of protection IP 20 – IP 54 Motor drive, digital / analog Separate winding Versatile accessories: e.g. TVR 6500 motor control Benefits High-precision adjustment (turn-to-turn voltage only approx. 0.7 V) Frequencies from 50 – 400 Hz No EMC problems Low heat dissipation Comparatively high performance with small dimensions Wide range of accessories Technical data Input voltage 3 x 400 V Output voltage 3 x 0 – 400 V or 3 x 0 – 450 V Output current 3 x 0.6 A to 32 A Output power 0.66 kVA to 24.9 kVA Frequency range 50 – 400 Hz Ambient temperature max. 40° C Gearshift group Star/Spar Protection class IP 00 – IP 20 Data sheet All data and configurations can be found in our product data sheet. Download data sheet
Variable Transformer DRTEU
Three-phase column variable transformers (autotransformer, ± adjustment) Description REO column variable transformers with ± adjustment, combined with REO Transformers, form the perfect solution – enabling double the power. The waveform of the sine wave is retained – so there are no EMC problems over the entire control range. All products in the series are supplied with UL-listed materials. The REO design enables easy handling and hysteresis-free adjustment of the output voltage, even at high adjustment speeds of the drive motor. REO column actuators are therefore perfect for high power adjustment. REO-column type variable transformers conform to EN 61558-2-14 Benefits High-precision adjustment (turn-to-turn voltage only approx. 0.7 V) Low-loss cores Vacuum impregnated windings Windings virtually maintenance free UL-listed materials Available in IP 00 and IP 20 Wide range of accessories Technical specifications DRTEU Input voltage 3x 400 V Output voltage 3 x ± 0 – 400 V, 3 x ± 0 – 500 V Output current 3 x 8.7 – 208 A Output power 6.0 – 153 kVA Frequency range 50/60 Hz Gearshift group Star/Spar Protection class IP 00 – IP 20 Technical specifications DRTEU-S Input voltage 3 x 400 V, 3 x 0 – 400 V, 3 X 0 – 660 V Output voltage 3 x ± 0 – 400 V Output current 3 x 21,5 – 557,0 Output power 15 – 384 kVA Frequency range 50/60 Hz Gearshift group Star/Spar Protection class IP 00 – IP 20 Technical specifications DRTGE Input voltage 3 x 400 V Output voltage 3 x 0 – 400 V, 3 x 0 660 V Output current 3 x 84 – 336.0 A Output power 3 – 384 kVA Frequency range 50/60 Hz Gearshift group Star/Spar Protection class IP 00 – IP 20 Options for column variable-ratio transformers Manual drive by means of spindle with supplement “SP” (vertical spindle) Manual drive by means of spindle bevel gear drive with supplement “SPW” (horizontal spindle) Circuit ± U Motor drives AC motor drive 230 V 50/60 Hz with supplement “MoK” DS motor drive 3 x 400/230 V 50/60 Hz with supplement “Mo” Enclosure versions Are also available in the standard protection class IP 20 in the standard RAL 7035 paint finish. Output voltage If the output voltage needs to be kept constant, REO has suitable controllers in its product range, e.g: NLR 7000 tracking controller for three-phase motors, NLR 2012 three-point controller for AC motors Further special designs on request Data sheet All data and configurations can be found in our product data sheet. Download data sheet
Variable Transformer DRTE
Three-phase column variable transformers (economy winding, IP 00) Description The REO column variable transformers supplement the REOVAR series for currents up to 1000A for fine adjustment of the output voltage with constant current at the output.The waveform of the sine wave is retained – so there are no EMC problems over the entire adjustment range.All products in the series are supplied with UL-listed materials, the REO design enables easy handling of the carbon roller and spindle and the copper bevel gear drive allows hysteresis-free adjustment of the output voltage even at high adjustment speeds of the drive motor. This makes REO column actuators perfect for high power adjustment. REO-column type variable transformers conform to EN 61558-2-14 Benefits High-precision adjustment (turn-to-turn voltage only approx. 0.7 V) Low-loss cores Vacuum impregnated windings Windings virtually maintenance free UL-listed materials Available in IP 00 and IP 20 Wide range of accessories Technical data DRTE Input voltage 3x 400 V , 3x 500 V Output voltage 3 x 0 – 400 V, 3 x 0 – 500 V Output current 3 x 8.7 – 208 A Output power 6.0 – 153 kVA Frequency range 50/60 Hz Gearshift group Star/Spar Protection class IP 00 – IP 20 Technical data DRTE-S Input voltage 3x 400 V Output voltage 3 x 0 – 400 V, 3 x 0 – 690 V Output current 3 x 21.5 – 557.0 A Output power 15 – 400 kVA Frequency range 50/60 Hz Gearshift group Star/Spar Protection class IP 00 – IP 20 Options for variable transformers Manual drive by means of spindle with supplement “SP” (vertical spindle) Manual drive by means of spindle bevel gear drive with supplement “SPW” (horizontal spindle) Circuit ± U Motor drives AC motor drive 230 V 50/60 Hz with supplement “MoK” DS motor drive 3 x 400/230 V 50/60 Hz with supplement “Mo” Enclosure versions Are also available in the standard protection class IP 20 in the standard RAL 7035 paint finish. Output voltage If the output voltage needs to be kept constant, REO has suitable controllers in its product range, e.g: NLR 7000 tracking controller for three-phase motors, NLR 2012 three-point controller for AC motors Further special designs on request Data sheet All data and configurations can be found in our product data sheet. Download data sheet
Toroidal core transformer RFT-VV
Fully encapsulated toroidal transformer Description Fully encapsulated toroidal transformers in a special plastic housing combine all the advantages of the toroidal transformer. The shape of the housing can be adapted exactly to the application. The plastic housing offers optimum mechanical protection against moisture and dust and also provides better thermal conductivity, which leads to increased power density.The mounting is realized by means of a central screw and thus enables a short assembly time. Benefits Fully sealed in the plastic housing High efficiency Very low no-load losses No humming Low voltage drop Protection class IP 54 (for the fully sealed housing) Low magnetic stray field Optimal mechanical protection Protection against humidity and dust Even heat distribution Connects with wires, strands or clamps according to VBG 4 Standards: EN 61558; EN 60601 Technical data Rated power 10 – 6000 VA Input voltage 230 V Output voltage 24 – 690 V Rated current max. 50 A Frequency range 50 – 400 Hz Temperature class T40/E and T40/B *In addition to these standard series, we develop special solutions with special voltages and higher outputs according to your requirements. Please get in touch with us. Data sheet All data and configurations can be found in our product data sheet. Download datasheet Certifications
Toroidal Core Transformer RFT – MV
Toroidal fixed transformer with sealed centre hole as a mains, auto, safety or isolation transformer Description Toroidal transformers with central potting or foot potting offer the same advantages as open transformers, but also provide an excellent solution for mounting the transformer. This series of transformers eliminates the need for additional mounting hardware, replacing it with a central screw that also ensures quick assembly. A safe distance to the mounting surface is maintained. Benefits Integrated mounting plate with partial sealing No humming Low magnetic stray field Low voltage drop High efficiency Direct mounting option with just one screw Safe distance to the mounting surface Connection with wires or stranded wires Standards: EN 61558; EN 60601 Technical data Rated power 10 – 6000 VA Input voltage 230 V Output voltage 24 – 690 V Rated current max. 50 A Frequency range 50 – 400 Hz Temperature class T40/E and T40/B *In addition to these standard series, we develop special solutions with special voltages and higher outputs according to your requirements. Please get in touch with us. Data sheet All data and configurations can be found in our product data sheet. Download datasheet Certifications
Toroidal fixed transformer, open
The toroidal fixed transformer in open design as a mains, auto, safety or isolation transformer Description Toroidal transformers offer significant advantages over conventional transformers: Their design results in up to 50% less volume with low weight. Since the toroidal cores have almost no air gap, only a very low magnetic stray field is generated, and the transformers are almost hum-free. Between no-load and full load, the change in secondary voltage is many times smaller than with laminated core transformers. Benefits Adaptation of mains voltage to different output voltages No humming Low magnetic stray field Low voltage drop Minimum overall weight small dimensions Connection with free wire or stranded wires Mounting set available as an accessory Standards: EN 61558; EN 60601 Technical data Rated power 10 – 6000 VA Input voltage 230 V Output voltage 24 – 690 V Rated current max. 50 A Frequency range 50 – 400 Hz Temperature class T40/E and T40/B *In addition to these standard series, we develop special solutions with special voltages and higher outputs according to your requirements. Please get in touch with us. Data sheet All data and configurations can be found in our product data sheet. Download datasheet Certifications
