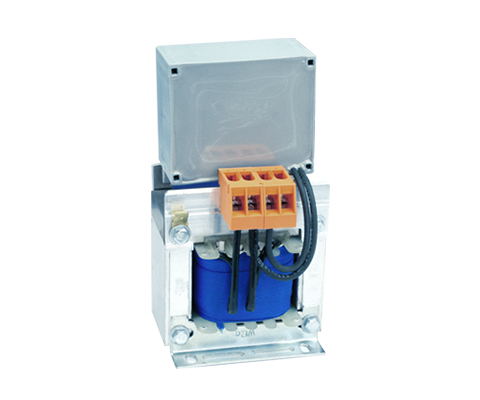

Single-phase sine wave filter 6,15% Uk
Description
Smoothing of the current and voltage in order to realize long connecting paths.
Advantages
- Low-temperature rise
- Low-noise
- Manufacturing according to UL Insulation System
E 251513 possible - Easy installation
- Adaptation to motor cables up to 1000 meters possible
- Saving the shielded cable possible
Typical application
Drive technology for motor drives, e.g. mechanical engineering, elevators, escalators, pumps, conveyor technology, ventilation and air conditioning, robotics, automation technology, power supplies, wind turbines
Technical data
- Ambient temperature: 50 ° C
- Protection class: IP00
- Insulation class: F
- Linearity: LN at 1.2 x IN u. ≥ 0.8 x LN at 1.5 x IN
- Test voltage: 3 kV
- Rated voltage: 230 V
- Uk: 6.15 %
- Overvoltage category: 2
- Pollution degree: 2
- Cooling: ON
- Switching frequency: ≥ 4 kHz
- Current ripple: ≤ 20% at 4 kHz
| Type | Nominal current [A] |
Inductance [mH] |
Resistance R20 [mΩ] |
Capacitance [µF] |
Power dissipation [W] |
Uk @ 230 V |
Uk @ 133 V |
Uk @ 400 V |
Copper [kg] |
| CNW 931 / 3 | 3 | 15 | 349,5 | 6,8 | 17 | 6,2 % | 10,6 % | 3,5 % | 0,15 |
| CNW 931 / 4 | 4 | 11,3 | 275,2 | 10 | 22 | 6,2 % | 10,7 % | 3,6 % | 0,23 |
| CNW 931 / 6 | 6 | 7,5 | 133,1 | 10 | 29 | 6,2 % | 10,6 % | 3,5 % | 0,29 |
| CNW 931 / 8 | 8 | 5,6 | 94,4 | 20 | 33 | 6,1 % | 10,6 % | 3,5 % | 0,33 |
| CNW 931 / 10 | 10 | 4,5 | 62,2 | 20 | 37 | 6,2 % | 10,6 % | 3,5 % | 0,53 |
| CNW 931 / 12 | 12 | 3,75 | 59,9 | 20 | 43 | 6,2 % | 10,6 % | 3,5 % | 0,64 |
| CNW 931 / 16 | 16 | 2,8 | 43,4 | 20 | 56 | 6,1 % | 10,6 % | 3,5 % | 0,82 |
| Type | L [mm] |
B1 [mm] |
B2 [mm] |
H [mm] |
N1 [mm] |
N2 [mm] |
Clamp [mm²] |
Weight [kg] |
| CNW 931 / 3 | 64 | 72 | 59 | 115 | 44 | 47 | 1,5 mm² | 0,9 |
| CNW 931 / 4 | 66 | 74 | 64 | 130 | 50 | 49 | 1,5 mm² | 1,1 |
| CNW 931 / 6 | 83 | 80 | 69 | 153 | 56 | 56 | 1,5 mm² | 1,8 |
| CNW 931 / 8 | 83 | 80 | 69 | 153 | 56 | 56 | 2,5 mm² | 1,9 |
| CNW 931 / 10 | 84 | 90 | 84 | 160 | 71 | 71 | 2,5 mm² | 2,5 |
| CNW 931 / 12 | 96 | 86 | 86 | 170 | 80 | 71 | 2,5 mm² | 3 |
| CNW 931 / 16 | 96 | 110 | 110 | 170 | 80 | 95 | 2,5 mm² | 4,4 |
All data and configurations can be found in our product datasheet.
