Isolating transformer for medical technology


The TÜV-certified REOMED isolating transformers are proven and reliable equipment for use with all electrical systems in a medical environment. They reduce the leakage current and thus help to ensure the safety of patients.
REOMED isolating transformers are characterized by their very low magnetic stray-fields and reliability, whilst also providing high efficiency and easy connectivity.

  • Medical systems


  • Wide range of options
  • Low weight
  • Short-circuit and overload protection
  • Integrated starting current limiter
  • Sturdy aluminium housing
  • Equipotential earthing pin as per DIN 42801
  • Plug connections as per IEC 60320
  • IEC 60601-1:2005/AMD1:2012
    ANSI/AAMIES 60601-1:2005/CR/2012
    CAN/CSA C22.2 No.60601-1:14 (medical technology) USA and Canada
    IEC 60601-1-2:2014 (Partly); EN/ IEC 61000-3-2:2014; EN/ IEC 61000-3-3:201

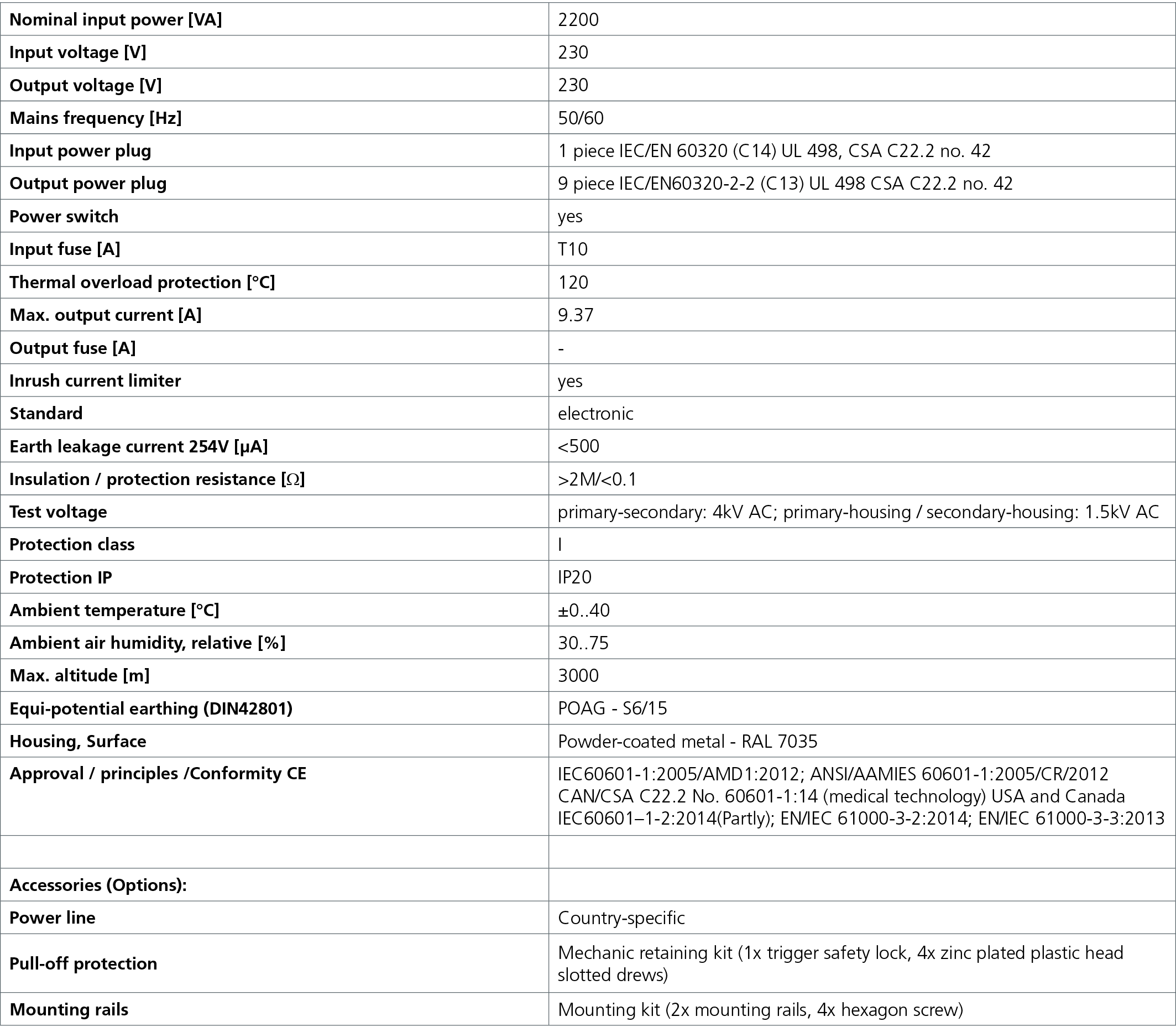

Technical specifications

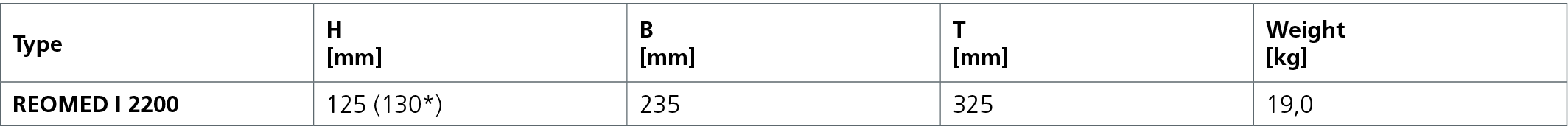

Dimensions in mm

* With rubber feet
